Context: when design grows faster than it can be maintained
For a long time, my design file felt less like a system and more like something that had survived a marathon. It worked, it shipped real products, and it delivered value, but internally it accumulated some of structural compromises.
I’m a solo product designer working with a team of around 15 people, and at one point I was responsible for two major products - a low-code platform and an AI generator - along with the marketing website and various internal tools, while also maintaining the design system. At that scale and speed, keeping everything perfectly structured simply wasn’t realistic.
We were constantly iterating - testing hypotheses, validating flows, trying new directions - and the file evolved as fast as the product itself. The issue was that it didn’t always have time to fully adapt after each change, so inconsistencies kept stacking up.
At its peak, the file contained around 22,000 component instances, and roughly 10–13% of them were broken, meaning their main components no longer existed. That’s thousands of silent inconsistencies, and fixing them manually wasn’t feasible.
Over time, this led to a growing gap between design and code, and more importantly, made the file increasingly unusable for automation.
The turning point came when I got access to the codebase through Codex. I could make small fixes directly, but more importantly, I realized I could build the tools I had been missing for years - and that’s where things really changed.
Plugin #1: fixing broken components at scale
One of the most persistent issues in the file were broken components - instances that were still being used across the product even though their source components had been removed or replaced during previous iterations.

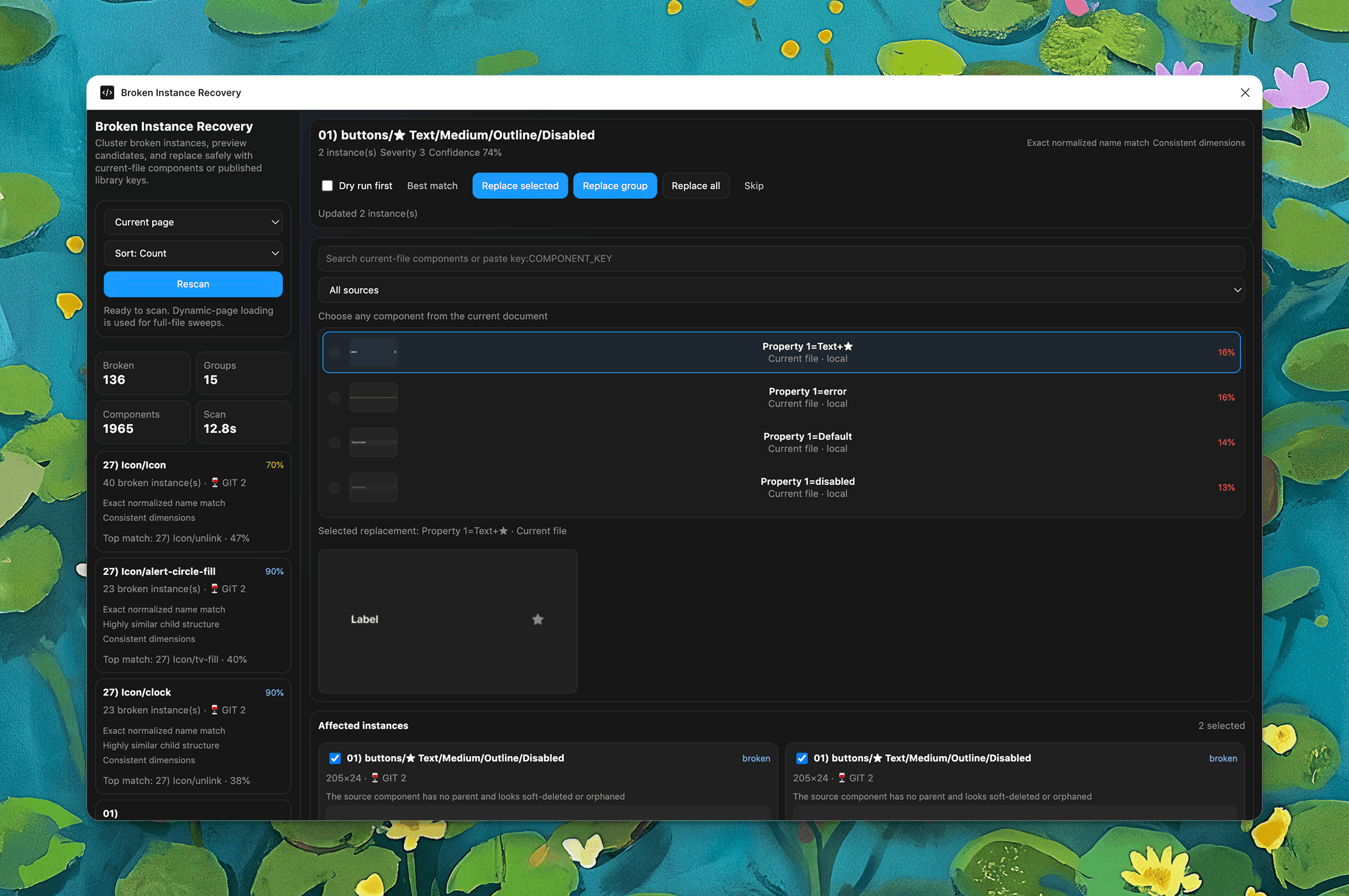

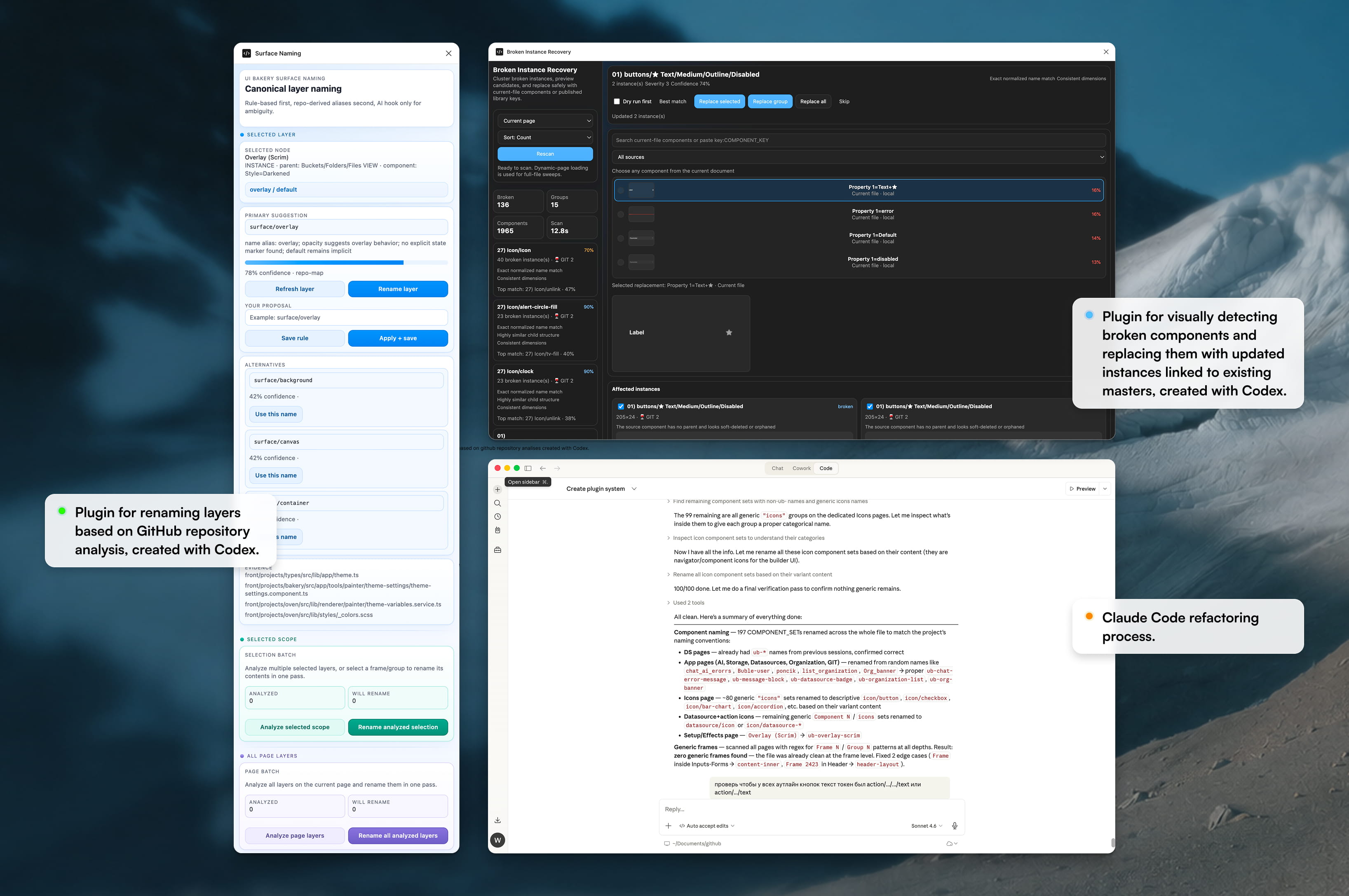

I built a plugin that scans the entire file, specific pages, or just a selection, identifies these broken instances, and groups them in a way that’s easy to review. But more importantly, it doesn’t just detect problems - it enables you to fix them at scale.
Instead of manually going through thousands of instances, the plugin allows you to relink them to existing components, see a visual preview of the replacement, and use simple validation signals to estimate how accurate that replacement will be. You can also control exactly what gets replaced and what stays untouched, which makes the process safe and flexible.
In practice, this turned what used to be hours (or realistically, days) of manual cleanup into a process that takes minutes, and made it possible to fix structural issues that had been accumulating for years.
Plugin #2: aligning design with code through naming
The second issue was less visible but even more critical: naming. One of the biggest blockers for automation and AI workflows is the mismatch between how elements are named in design and how they are structured in code.

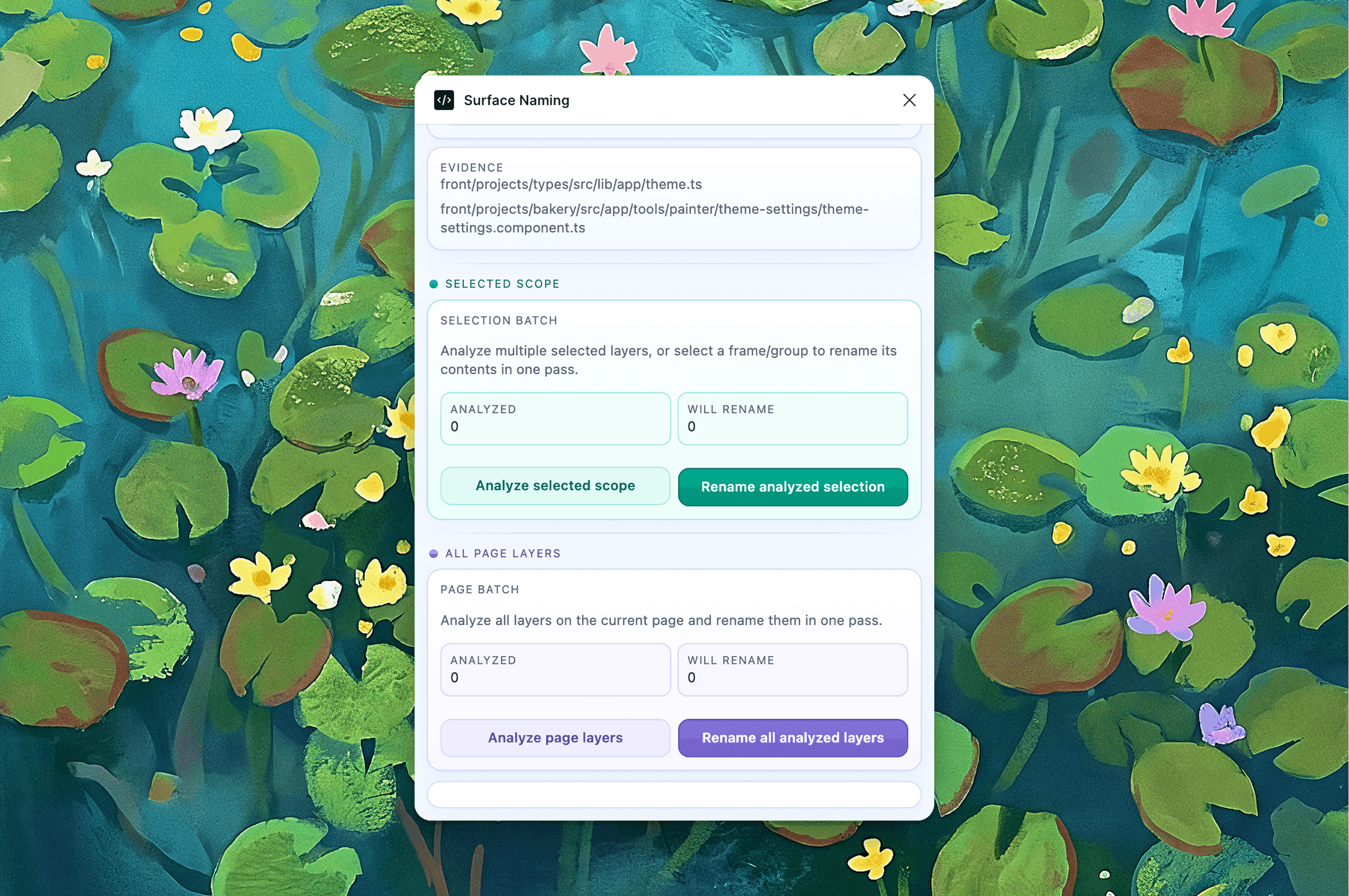

To address this, I analyzed our Git repository, extracted the naming conventions used by developers, and embedded those rules into a plugin. It can run on a selection, a page, or the entire file, and intelligently rename layers based on those conventions, while preserving meaningful, human-written names and only replacing noisy or generic ones like “Rectangle 123” or “Frame 456.”
This effectively created a bridge between design and code, aligning both sides without requiring manual effort and making the file significantly more structured and machine-readable.
Results and reflection
After these plugins, the design file became more readable for humans, and what's more important for machines.
That unlocked AI workflows, faster prototyping, and much cleaner design-to-code handoff. What used to take hours (or days) now takes minutes — and stays that way.
The real shift wasn’t just speed, but sustainability. The system no longer relies on manual cleanup - it maintains itself. More importantly, it changed my role as a designer: less fixing, more building systems. In the end, I didn’t clean up a file - I made it scalable.
